Your Guide to ER Collets Sizes and Uses

ER collet sizes are expressed in millimeters, ranging from ER11 to ER40 and beyond. Each size refers to the maximum capacity of the collet. For instance, an ER11 can hold tools with a diameter up to 7 mm, while an ER40 can handle tools up to 26 mm. Knowing these sizes helps you choose the right collet for your tool. You don’t want to struggle with a collet that’s too small or too large for your needs.

Different collet sizes serve various purposes in machining. For light, precise work, you might opt for the smaller ER11 or ER16 sizes. They’re perfect for working with tiny bits in delicate projects. If you're tackling heavier tasks, larger sizes like ER32 or ER40 come in handy. These hold larger bits and can handle more power, making them great for tougher materials.

CNC Collets

Common Uses for ER Collets

ER collets are super versatile tools that you’ll often find in CNC applications. They hold various types of tooling, like end mills and drills, and are great for ensuring precision. If you're getting into CNC machining or just want to expand your toolkit, knowing how to use ER collets effectively can make a big difference.

One common use for ER collets is in milling operations. When you're working with end mills, these collets provide a tight grip, which helps achieve a clean, accurate cut. You won’t have to worry about tool slippage, which is essential when you're aiming for precision in your projects.

Another popular application is in drilling. Whether you're creating holes or doing some light boring, ER collets can securely hold drill bits in place. This lets you drill with confidence, knowing the bit isn’t going to wobble around. Plus, switching between different sizes is a breeze, which can save you time when you’re deep into a project.

Many folks also use ER collets for tapping. They help align the tap perfectly while providing the necessary support during the cutting process. This feature is especially handy if you need clean threads without any fuss. Overall, ER collets are a solid choice in a variety of settings, and knowing their common uses helps you leverage them effectively in your CNC machining endeavors.

If you’re diving into the world of CNC, getting familiar with ER collets is key. Whether you’re milling, drilling, or tapping, understanding how these tools fit into your workflow is essential. ER Collets Explained: Sizes, Types, and Common CNC Uses will definitely give you all the info you need to become a pro.

6 HSK63F Tool Holders with ER32 Collets and End Mills

Get ready to maximize your machining efficiency with this set of high-quality tool holders and collets that keep your projects running smoothly

Product information

$349.99

Product Review Score

4.61 out of 5 stars

9 reviews

Description

These 6 HSK63F tool holders come with ER32 collets and end mills, making them an awesome addition to your CNC setup. They’re designed for precision and stability, ensuring you get the best performance from your machining projects.

Product links

Continue

Choosing the Right Size for Your Project

When diving into the world of CNC machining, picking the right ER collet size is super important. You want to make sure you're getting the best performance out of your machine, and the size of your collet can make a big difference in how well everything works together. Let’s break it down.

First off, think about the material you're working with. For softer materials like aluminum or plastic, you might not need a heavy-duty collet. A smaller size like ER16 or ER20 could do the trick. They hold your tools tightly but won’t wear out your materials or your machine. On the flip side, if you're tackling tougher materials like steel or titanium, a larger size, like ER32 or ER40, will give you the strength and stability you need for those demanding cuts.

Another thing to consider is the type of work you plan to do. If you're doing intricate detailing or working with smaller bits, go for the smaller sizes. They provide the precision you need. However, if you're using larger tools for bulk material removal, reach for those bigger collets. They’ll handle the stress without issues.

Don’t forget about the tool shank size, either. Make sure the collet you pick matches your tool shank size. If you mix them up, you could end up with a loose fit that can lead to a messy operation or even tool breakage.

In short, choosing the right size collet is crucial for getting the best results from your CNC projects. Understand the specifics of what you’re working with, and you’ll be on the right track. For everything you need to know, check out our guide on ER Collets Explained: Sizes, Types, and Common CNC Uses.

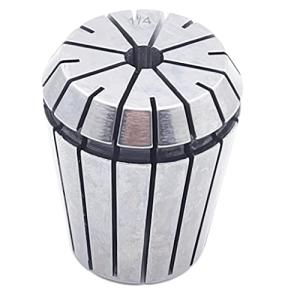

1/4" ER32 Precision Spring Collets for CNC

Achieve tight clamping and precise machining with these durable 1/4" ER32 precision spring collets

Product information

$9.99

Product Review Score

4.61 out of 5 stars

219 reviews

Description

The 1/4" ER32 Precision Spring Collets are a must-have for any CNC enthusiast looking for precision and versatility. They hold your tools securely and provide a snug fit, making your machining tasks smoother and more accurate every time.

Product links

Continue

Tips for Maintaining ER Collets

Keeping your ER collets in top shape is key to achieving the best results on your CNC machine. Here are some easy tips to help you maintain them and keep your projects smooth sailing.

First off, always clean your collets after each use. Dust, debris, and cutting chips can build up and cause issues. Just wipe them down with a clean cloth or use some compressed air to blow out any stubborn particles. A clean collet will grip your tools properly, preventing slipping and errors.

Next, check for wear and tear regularly. Look for cracks or deformation. If you see any damage, it’s a good idea to replace them. A worn collet can lead to inaccuracies in your work and potentially harm your CNC machine. It’s better to be safe than sorry!

Make sure to store your ER collets in a safe place where they won’t get banged up or misplaced. A dedicated box or organizer can be a game changer. Keeping them safe ensures that they stay in great condition for all your projects.

Lastly, don’t forget to use the right torque when tightening collets. Over-tightening can lead to damage, while under-tightening can cause slippage during operation. Follow the manufacturer’s guidelines that come with your ER Collets Explained: Sizes, Types, and Common CNC Uses for the best results!
