Understanding CNC Variable Frequency Drives Made Simple

A Variable Frequency Drive (VFD) is a vital component in CNC machines. Basically, it controls the speed and torque of the electric motors that power these machines. If you’ve ever wondered, What Is a CNC Variable Frequency Drive (VFD) and How Does It Work? let’s break it down.

The main job of a VFD is to adjust the frequency of the electrical supply. When you change the frequency, you change the speed at which the motor runs. So if you need more speed for cutting, the VFD ramps up the frequency. Conversely, if you need precision cutting at a slower speed, it can bring it down. This feature not only saves energy but also helps extend the life of your motor.

CNC VFD  Products

VFDs come with some handy features. Many models let you set specific speed parameters, which helps in achieving those perfect cuts consistently. They can also provide soft starts for your machine, preventing that sudden jolt that can wear out parts over time. With a VFD, you have smoother operation and better control over your CNC processes.

Plus, these drives can be used with various types of motors, not just the ones in CNC machines. They’re pretty versatile. Whether you’re running a milling machine or a lathe, a VFD can make a significant difference in performance. This flexibility makes it a worthwhile investment for any CNC operator looking for efficiency.

How VFDs Control CNC Machines

CNC machines need a way to control their motors effectively, and that’s where VFDs come into play. A Variable Frequency Drive (VFD) adjusts the speed and torque of the motor based on what you need for each cutting task. By changing the frequency of the electrical power sent to the motor, VFDs help you get the exact performance you want.

So, how does a VFD do this? It starts by converting the incoming AC power into DC voltage. This step is crucial because it allows the VFD to control the power output with precision. After that, it changes that DC voltage back into a variable AC signal. This signal can be adjusted to run the motor at any speed you need, making it super versatile for different machining tasks.

One of the coolest features of VFDs is their ability to focus on energy efficiency. By allowing the motor to run only at the required speed, they cut down on wasted energy. This is not only good for your electricity bill but also helps extend the life of your CNC machine. Plus, they can even help create smoother starts and stops, which is great for maintaining control during machining.

If you're diving into CNC operations, understanding what a CNC Variable Frequency Drive (VFD) is and how it works can seriously boost your efficiency. With VFDs, you're not just powering your machine; you're optimizing its performance, cutting down on costs, and achieving better results. It's a win-win when it comes to your machining tasks!

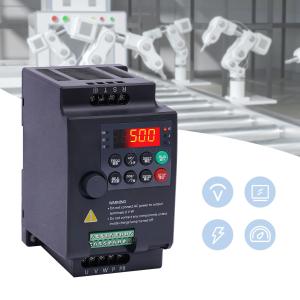

3HP 220V Variable Frequency Drive for CNC

Unlock precise control of your CNC machine for smoother performance and enhanced productivity

Product information

$87.89

Product Review Score

4.09 out of 5 stars

44 reviews

Description

This 3HP variable frequency drive works great for your CNC setup and is dependable for managing motor speeds effectively. It also comes with a DC cooling fan to keep things running smoothly and ensuring your inverter stays stable.

Product links

Continue

Benefits of Using VFDs in CNC

First off, VFDs offer precise control over the speed of your CNC spindle. Instead of relying on fixed speeds, you can adjust the RPM to match the specific task at hand. This flexibility leads to better finishes, reduced waste, and helps you get the most from your tools.

Another big perk is energy efficiency. By adjusting the speed of the motor to match your machine’s requirements, a VFD can significantly cut down on energy use. This not only saves you money on electricity bills but also lowers the strain on your equipment. Less wear and tear means a longer lifespan for your CNC machine!

VFDs also enhance overall performance. These drives can help maintain torque even at lower speeds, so you don't lose power when you need it most. This is especially beneficial when you’re cutting tougher materials or when precision is crucial.

So, what is a CNC Variable Frequency Drive (VFD) and how does it work? It’s all about giving you smarter control over your CNC operation. With these benefits, investing in a VFD can really up your CNC game and streamline your processes!

Gecko G540 CNC Driver with 3-Year Warranty

Power your CNC projects with confidence using the reliable Gecko G540 CNC Driver backed by a solid three-year warranty

Product information

$265.00

Product Review Score

4.41 out of 5 stars

210 reviews

Description

The Gecko G540 CNC Driver is super user-friendly and comes with a solid 3-year warranty for peace of mind. In a helpful YouTube breakdown, Marcus, an application engineer, walks you through how to change a fuse or a drive, making setup and maintenance a breeze.

Product links

Continue

Choosing the Right VFD for Your Needs

When it comes to CNC machines, picking the right Variable Frequency Drive (VFD) can make a big difference in your setup. You might be wondering, "What Is a CNC Variable Frequency Drive (VFD) and How Does It Work?" Well, VFDs control the speed and torque of your motors, helping you get the precise performance you want. But with so many options out there, how do you choose the best one for your needs?

Start by considering the horsepower and voltage requirements of your CNC machine. Make sure the VFD can handle the power your machine needs. If you have a larger CNC system, you'll need a VFD that can provide enough power without overheating. Also, pay attention to the input and output voltage ratings. It’s crucial to match these with your CNC setup to avoid any compatibility issues.

Next, think about the control features you might need. Some VFDs offer simple controls for basic setups, while others have more advanced options like PID control for better precision. If you’re just starting out, a straightforward VFD with easy setup might suit you just fine. But if you’re a pro looking for more fine-tuning options, look for a model that offers that level of control.

Don't forget about communication options, either. Some VFDs can connect to your CNC controller for smooth integration, while others may not have this capability. If you're planning to expand your system in the future, a VFD with robust communication features can save you some headaches down the line.

Lastly, consider ease of use and support. Check reviews to see how easy it is to set up and troubleshoot. Companies that offer good customer support can be a lifesaver. You want a VFD that meets your needs, is user-friendly, and comes from a manufacturer that stands by their product.
